Data Center Server Rack: The Ultimate Guide [2024]

data center server rack

A data center server rack is critical for managing and organizing IT equipment. It supports hardware, enhances cooling, and ensures efficient power distribution. Choosing the right server rack involves understanding key dimensions, types, and features. This guide covers everything you need for making the best selection for your data center.

Key Takeaways

  • Server racks are critical for data centers, providing essential support, cooling, power distribution, and security for IT systems.
  • Choosing the right server rack involves understanding dimensions, weight capacity, cooling needs, and the type of rack, whether open or closed frame.
  • Regular maintenance and proper installation are key to ensuring the longevity and efficiency of server racks, with a focus on grounded connections and airflow management.

Understanding Data Center Server Racks

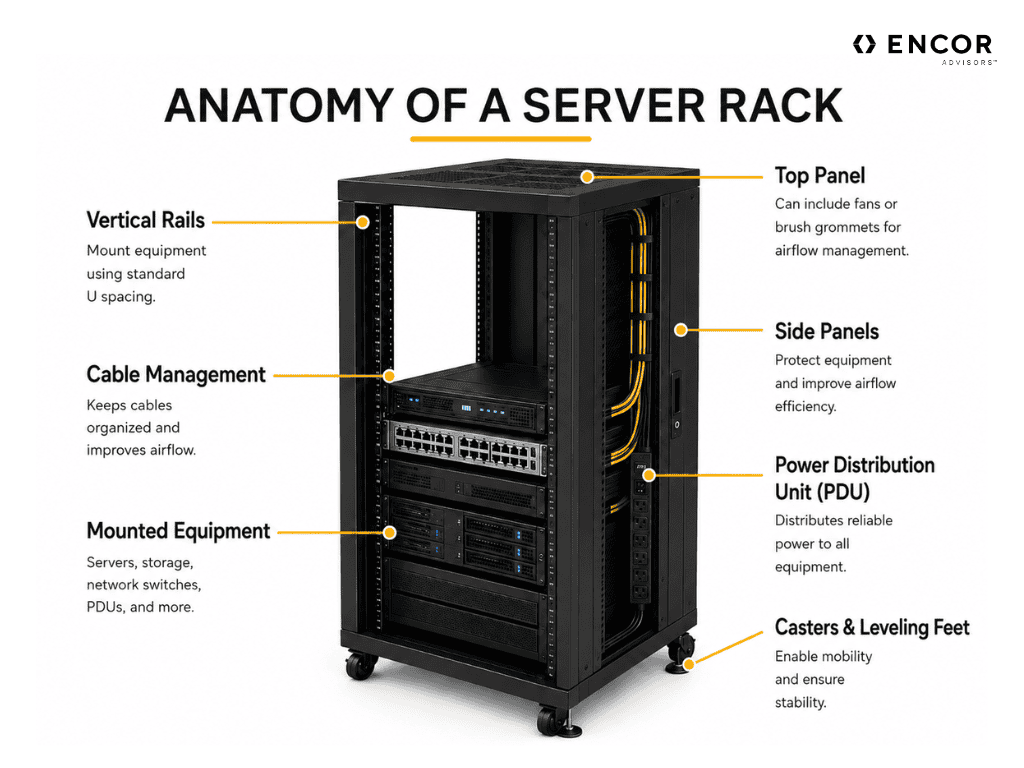

An illustration of a data center server rack filled with various network equipment.

Server racks are the backbone of any data center rack, providing essential support for IT systems.

These racks go beyond mere physical support; they integrate power distribution, cooling, and monitoring to ensure seamless operation.

Over time, server racks have evolved from simple frameworks to sophisticated enclosures designed to host and manage IT equipment securely and efficiently.

Server racks are crucial for data centers, supporting critical hardware and optimizing overall functionality.

They play a pivotal role in modern data center infrastructure.

Knowing their role and functionality helps in selecting the right one for your needs.

Key Dimensions of Server Racks

Server rack size is important as it needs to accommodate the equipment it will house, affecting server capacity, cable management, and power equipment accommodation.

Selecting the right dimensions ensures your equipment fits and operates efficiently.

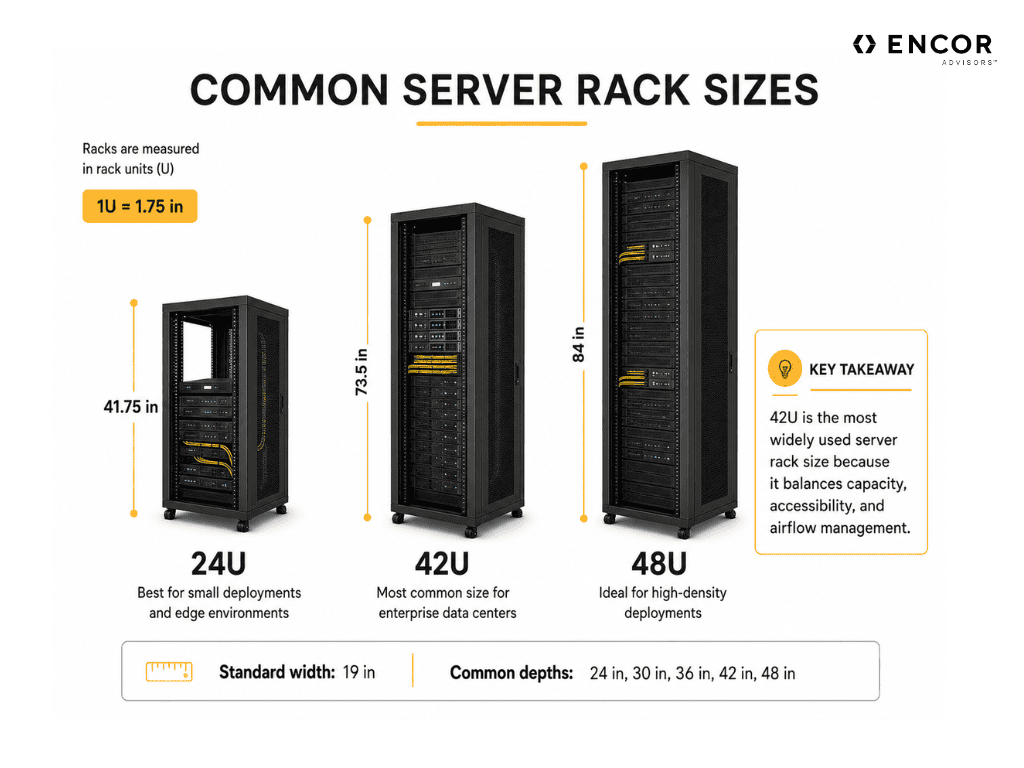

Rack Height and Rack Units

Rack height is typically measured in rack units (RU), with one RU equating to 1.75 inches.

The most common height for server racks in data centers is 42U, which translates to a height of 73.5 inches.

This size is preferred due to its ability to accommodate a significant amount of equipment while maintaining manageability, including rack unit indicators.

Standard IT racks can range from 1U to 3U, allowing for a variety of configurations depending on your specific needs.

Knowing the height and rack units helps in planning the layout and ensuring adequate space for all your equipment.

Rack Width

The standard width for server racks is 19 inches, a size that ensures compatibility with a wide range of IT devices.

This width is designed to fit standard mounting configurations, allowing for seamless integration and efficient use of space.

Rack Depth

Rack depth varies to accommodate different types of equipment.

Common depths range from 27 to 42 inches, with around 42 inches being the maximum depth most servers typically require.

For high-performance equipment, deeper options are available, ensuring that all your server needs are met.

Types of Data Center Server Racks

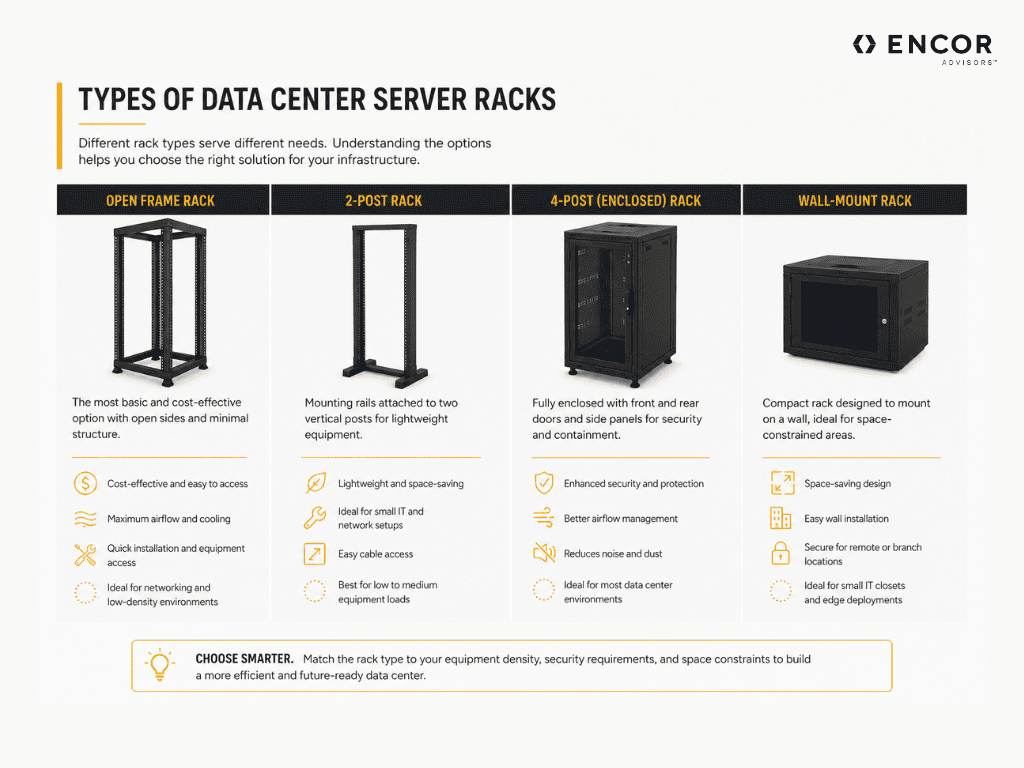

An illustration depicting different types of data center server racks including open and closed frame racks.

Server racks come in various types, each catering to different operational needs within a data center.

The primary categories are open frame racks and closed frame racks, each offering unique advantages based on their structure and design.

Open Frame Racks

Open frame racks are a flexible and cost-effective option for mounting equipment in data centers.

They provide quick access to devices and facilitate unobstructed airflow, making them ideal for environments where cooling is a priority.

Additionally, their cost-effectiveness makes them a popular choice for many data centers.

Closed Frame Racks

Closed frame racks, or cabinet racks, provide enhanced security and environmental protection.

Fully enclosed with locking cabinet doors, they protect against unauthorized access and physical damage, making them ideal for sensitive equipment requiring a controlled cabinet frame conform.

In addition to security, closed frame racks also protect against dust and moisture, making them ideal for data centers with strict environmental requirements.

The ability to add locking mechanisms further enhances security, ensuring that only authorized personnel can access the equipment.

Choosing the Right Server Rack for Your Data Center

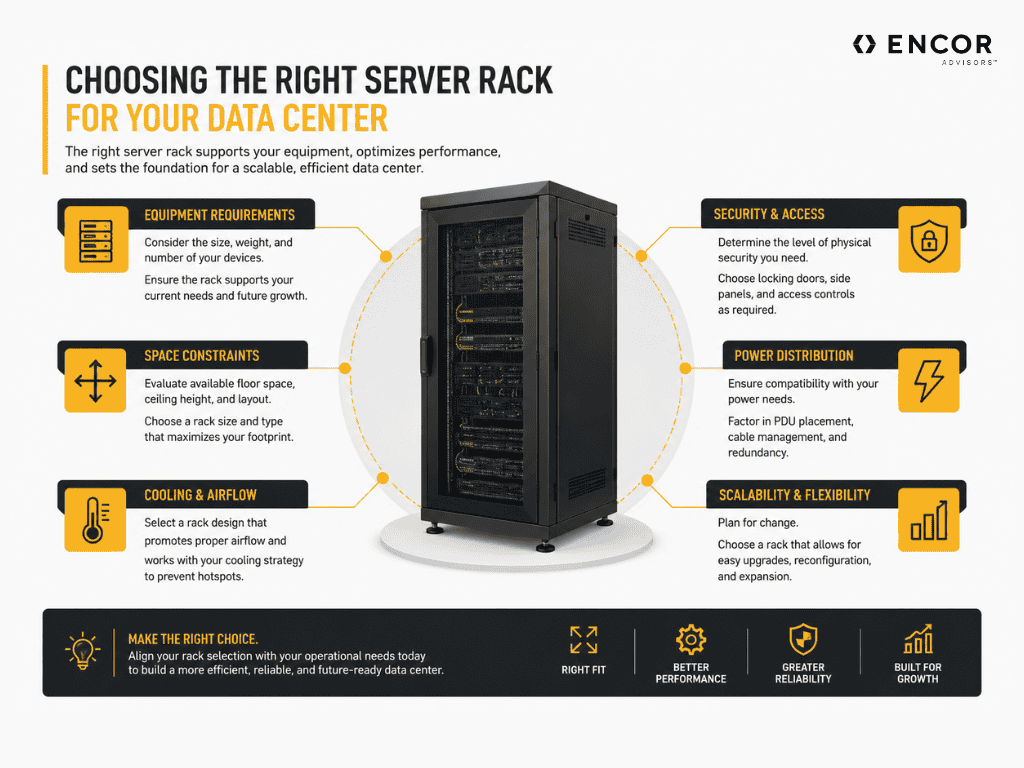

An illustration showcasing the process of choosing the right server rack for a data center.

Selecting the right server rack requires considering factors like the number of servers, energy efficiency, and future deployment needs.

Customized racks meet specific requirements, while preconfigured racks offer cost savings and quick delivery.

These considerations help in making the best choice for your data center.

Weight Capacity

Weight capacity is a key factor when selecting a server rack.

Choose a rack based on the maximum weight of all installed equipment to avoid structural failure.

For heavy-duty applications, server racks with a capacity of up to 3,000 lb are recommended.

Cooling and Thermal Management

Effective cooling and thermal management are crucial for optimal conditions in server racks.

Adequate airflow, achieved through passive or active methods, ensures IT equipment remains cool and operates efficiently.

Avoiding excess empty space and implementing proper cable management can significantly enhance airflow and reduce the risk of overheating.

High-density configurations may require specialized cooling solutions to maintain optimal temperatures.

High-quality server racks often include advanced cooling solutions, such as fans and cabinet airflow packages, to support better airflow management compared to open racks.

Regular checks on ventilation systems and cleanliness are also essential to prevent dust accumulation and overheating.

Scalability and Future-Proofing

Scalability and future-proofing are important when selecting a server rack.

Choose a rack size that allows for future growth, enabling you to add servers over time without major modifications.

Adjustable mounting rails enhance compatibility with various equipment sizes, making installations more versatile and ensuring your data center can adapt to new technologies while achieving full mounting depth utilization.

Essential Features of Data Center Server Racks

An illustration of essential features of data center server racks like cable management and security features.

Consider essential features that enhance performance and usability when selecting a server rack.

Modern server racks offer improved cooling, efficient power distribution units (PDUs), and effective cable management solutions, contributing to optimal operation and longevity of your data center.

Cable Management Solutions

Effective cable management is critical for maintaining organization within server racks.

Properly managed cables prevent interference, simplify connection identification, and reduce disconnection risks.

Poor cable management can obstruct airflow, cause overheating, and complicate troubleshooting.

Systematic cable management solutions, such as brushed cable entry points, cable routing systems, and smaller-diameter cables, help maintain data integrity and optimize rack space.

These solutions contribute to better airflow, reduce signal interference, and enhance the scalability of your data center.

Adjustable Mounting Rails

Adjustable mounting rails provide flexibility for mounting various equipment types, ensuring efficient operation by preventing overheating and enhancing reliability.

Rails with cage nuts offer a cost-effective and flexible method for mounting rack components and rack mount equipment, allowing for easy adjustments and realignment based on equipment weight and power distribution needs.

Security Features

Security features protect sensitive equipment within server racks.

Physical locks and advanced access controls, like biometric systems, provide multiple layers of protection.

The server cabinets H1 Series, for example, features a perforated front door with a locking swing handle and a perforated split rear door for enhanced security.

Incorporating these security measures safeguards equipment and enhances the overall integrity of the data center.

Power Distribution in Server Racks

Power distribution within server racks ensures reliable power delivery to all mounted equipment.

Power Distribution Units (PDUs) manage power distribution efficiently, ensuring all devices receive the power they need.

Power Distribution Units (PDUs)

Rack-based PDUs distribute power within server racks and often include intelligent features for remote monitoring and management of power consumption.

Modular PDUs are particularly adaptable, as they can expand to meet increasing rack load requirements.

Switched PDUs, for instance, enable individual control of power to connected devices, enhancing power management options.

Additionally, crisscrossing power cables within racks should be avoided to prevent interference, and monitoring live electrical loads can aid in managing energy consumption.

Redundant Power Feeds

Redundant power feeds, consisting of A and B feeds, provide two independent distribution paths to ensure continuous power supply, preventing downtime during maintenance or power failures.

Effective grounding systems within server racks reduce the chances of electrical faults and enhance overall safety.

Grounding connections help protect against electrical surges and fires, ensuring reliable operation of telecommunications systems and avoiding service interruptions.

Rack Layout and Space Utilization

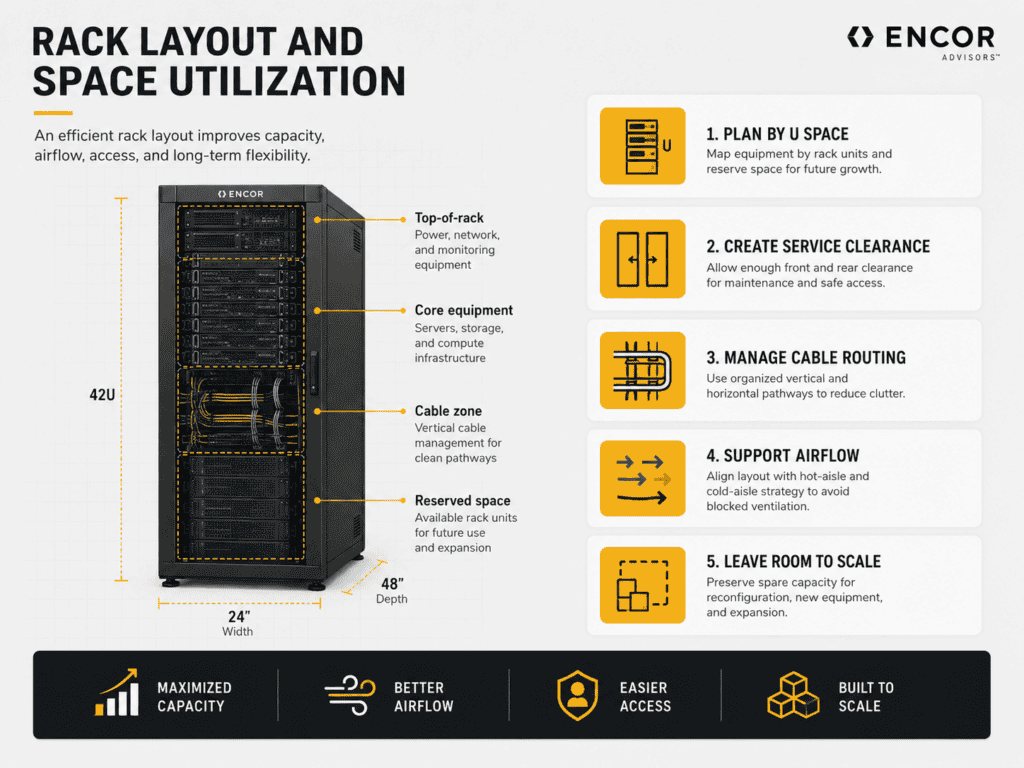

An illustration depicting a well-organized rack layout and space utilization in a data center.

Efficient rack layout and space utilization are essential for optimizing data center performance.

Standard server rack sizes allow for consistent arrangements, minimizing space requirements and leading to cost and energy savings.

Proper rack optimization prevents the hindrance of seamless integration of new hardware.

Rack Alignment

Proper rack alignment ensures optimal performance and energy efficiency in data centers.

Correctly positioned racks enhance airflow management and minimize the mixing of hot and cold air.

Improved airflow directly contributes to reducing the load on cooling systems, leading to greater energy efficiency.

Blanking Panels

Blanking panels prevent airflow leakage in server racks, enhancing cooling efficiency.

They eliminate open spaces, promote better airflow management, and help manage temperature variances, reducing hotspots.

Installation and Maintenance Tips

Proper installation and regular maintenance of server racks ensure longevity and optimal performance.

Choosing the right location involves considering factors like ventilation, power access, and sufficient maintenance space.

Ensuring the strength of the floor is also important, as server racks can support heavy equipment that may exceed standard weight limits.

Regular maintenance, including an effective cleaning regimen, helps prevent hardware malfunctions.

Proper Grounding

Proper grounding ensures safety and reliable power distribution in server racks.

Regular inspections of grounding connections help identify corrosion or damage, maintaining system integrity.

Regular Inspections

Regular inspections can detect potential issues early, preventing equipment failures.

These inspections should check for loose mounts, equipment malfunctions, and signs of cable damage.

Additionally, regular checks of grounding connections ensure they maintain their integrity and functionality, reducing the likelihood of downtime and ensuring compliance with safety standards.

Summary

In summary, choosing the right server rack for your data center involves understanding the various types, dimensions, and features that make up these essential components.

From rack height and width to cooling solutions and security features, every aspect plays a crucial role in ensuring the optimal performance of your data center.

By considering factors such as weight capacity, scalability, and future-proofing, you can select a server rack that not only meets your current needs but also accommodates future growth.

Proper installation and regular maintenance further ensure that your data center operates efficiently and reliably.

With the right knowledge and tools, you can create a data center that stands the test of time.

FAQs

What is the standard width of server racks?

The standard width of server racks is 19 inches, making it a go-to size for most IT equipment. This compatibility is key for efficient space utilization in data centers.

Why is proper cable management important in server racks?

Proper cable management is essential for keeping everything organized, which prevents signal interference and improves airflow. Plus, it makes troubleshooting a whole lot easier when you need to pinpoint issues quickly.

What are the benefits of using open frame racks?

Using open frame racks is great because they allow quick access to devices and ensure good airflow, which is crucial for keeping equipment cool. Plus, they’re usually more budget-friendly, making them a smart choice for data centers.

How do blanking panels improve cooling efficiency?

Blanking panels improve cooling efficiency by preventing airflow leakage, which helps manage airflow better and reduces hotspots in server racks. This leads to a more effective cooling environment overall.

What is the importance of redundant power feeds in server racks?

Redundant power feeds are crucial because they ensure that a server rack stays powered even if one feed fails, preventing downtime and maintaining continuous operation. This reliability is essential for keeping your systems running smoothly.

What are the main types of server racks used in data centers?
  1. Open frame racks: These provide unobstructed access and excellent airflow.
  2. Enclosed cabinets: Offer better security and environmental control.
  3. Wall-mount racks: Ideal for smaller spaces or edge computing setups.
  4. OCP (Open Compute Project) racks: Designed for efficiency and scalability.

Each type serves different purposes, with open frame racks being popular for their accessibility and enclosed cabinets preferred for enhanced protection of equipment.

How many servers can fit in a standard data center rack?

A standard 42U rack can accommodate:

  • Up to 42 1U servers
  • 21 2U servers
  • A combination of different-sized equipment

The total number depends on the form factor of the servers and other equipment installed. For example, if you reserve space for a 4U storage array and a 2U switch, you’d have room for 36 1U servers in a 42U rack. Other common rack sizes like 45U and 48U can hold correspondingly more equipment.

What factors should be considered when choosing server racks for a data center?
  1. Equipment dimensions and weight
  2. Power and cooling requirements
  3. Cable management needs
  4. Security considerations
  5. Scalability for future growth
  6. Compatibility with existing infrastructure
  7. Environmental factors (e.g., seismic activity, humidity)
  8. Accessibility for maintenance
  9. Cost-effectiveness
  10. Compliance with industry standards

Careful evaluation of these factors ensures optimal performance and efficiency in your data center setup.

How do you properly install equipment in a server rack?

To properly install equipment in a server rack:

  1. Plan the layout, placing heavier items at the bottom
  2. Install appropriate rails or shelves for each piece of equipment
  3. Secure the rails to the rack using the correct mounting hardware
  4. Attach inner rails to the equipment if required
  5. Carefully slide the equipment into the rack
  6. Secure the equipment to the rack front
  7. Connect necessary cables, ensuring proper cable management
  8. Verify all connections and test the equipment

Following these steps helps ensure safe installation and optimal functioning of your data center equipment.

What are the benefits of using OCP racks in data centers?

OCP (Open Compute Project) racks offer several advantages:

  1. Standardized design for better interoperability
  2. Improved airflow and cooling efficiency
  3. Higher density (48U height, 21-inch width)
  4. Simplified maintenance with centralized power and network connections
  5. Enhanced scalability for growing data centers
  6. Potential cost savings through standardization
  7. Optimized for modern, high-efficiency data center designs

These benefits make OCP racks an attractive option for large-scale data center operations focused on efficiency and scalability.

How do you manage cable organization in server racks?

Effective cable organization in server racks involves:

  1. Using appropriate length cables to avoid excess
  2. Implementing color-coding for easy identification
  3. Utilizing cable management accessories (e.g., cable trays, vertical managers)
  4. Bundling cables neatly with velcro straps or cable ties
  5. Leaving slack for future adjustments without excess loops
  6. Separating power and data cables to reduce interference
  7. Labeling cables clearly for easy troubleshooting
  8. Regularly auditing and cleaning up unused cables

Good cable management improves airflow, reduces the risk of errors, and facilitates easier maintenance and upgrades.

What are the cooling considerations for server racks in data centers?

Key cooling considerations for server racks include:

  1. Proper airflow management (hot aisle/cold aisle configuration)
  2. Adequate spacing between racks for air circulation
  3. Use of blanking panels to prevent air recirculation
  4. Implementation of in-row or in-rack cooling solutions for high-density setups
  5. Monitoring of inlet and outlet temperatures
  6. Consideration of liquid cooling for high-performance computing
  7. Regular maintenance of cooling systems
  8. Optimization of server placement based on heat output

Effective cooling strategies help maintain optimal operating temperatures, improve equipment lifespan, and enhance overall data center efficiency.

How do you ensure proper power distribution in server racks?

To ensure proper power distribution:

  1. Install appropriate Power Distribution Units (PDUs)
  2. Calculate and monitor power load to prevent overloading
  3. Implement redundant power supplies for critical equipment
  4. Use cable management solutions to organize power cords
  5. Ensure proper grounding of all equipment
  6. Consider intelligent PDUs for remote monitoring and management
  7. Plan for future power needs and scalability
  8. Regularly inspect and maintain power infrastructure

Proper power distribution is crucial for maintaining uptime and preventing electrical issues in the data center.

What security measures should be implemented for server racks?

Security measures for server racks should include:

  1. Physical locks on enclosed cabinets
  2. Electronic access control systems
  3. Video surveillance of the rack area
  4. Environmental monitoring (temperature, humidity, smoke detection)
  5. Tamper-evident seals on critical equipment
  6. Regular security audits and access logs review
  7. Restricted access policies for data center personnel
  8. Secure cable management to prevent unauthorized access

These measures help protect valuable equipment and sensitive data from unauthorized access or tampering.

How do you plan for future growth when setting up server racks?

To plan for future growth:

  1. Choose scalable rack designs
  2. Leave space for additional equipment
  3. Implement modular power and cooling solutions
  4. Use flexible cable management systems
  5. Consider higher capacity racks (e.g., 48U instead of 42U)
  6. Plan for increased power and cooling needs
  7. Implement virtualization to maximize existing hardware
  8. Regularly review and update your data center layout plan

Proper planning ensures your data center can accommodate growth without major disruptions or costly overhauls.

What are the best practices for maintaining server racks?

Best practices for server rack maintenance include:

  1. Regular cleaning to prevent dust accumulation
  2. Checking and tightening all connections periodically
  3. Monitoring and replacing failing components promptly
  4. Keeping accurate inventory and documentation
  5. Performing regular cable management audits
  6. Updating firmware and software on all equipment
  7. Conducting thermal imaging to identify hot spots
  8. Implementing a preventative maintenance schedule

Regular maintenance helps prevent downtime, extends equipment life, and ensures optimal performance of your data center infrastructure.

How do you choose the right size server rack for your needs?

To choose the right size server rack:

  1. List all equipment to be housed in the rack
  2. Calculate total rack units (U) required
  3. Consider future growth and add 20-30% extra capacity
  4. Determine depth requirements for your deepest equipment
  5. Check width compatibility (usually 19″ or 23″)
  6. Consider room constraints and door clearances
  7. Evaluate cooling and power requirements
  8. Balance between density and manageability

Selecting the appropriate size ensures efficient use of space and accommodates your current and future needs.

What are the advantages of using enclosed server racks?
  1. Enhanced physical security for equipment
  2. Better control over airflow and cooling
  3. Reduced dust and debris exposure
  4. Improved noise reduction
  5. Organized cable management
  6. Protection against accidental bumps or spills
  7. Option for integrated cooling solutions
  8. Aesthetic appeal in visible areas

These advantages make enclosed racks a popular choice for many data center environments, especially where security and environmental control are priorities.

How do you properly ground server racks?

Proper grounding of server racks involves:

  1. Connecting the rack to the building’s grounding system
  2. Using appropriate grounding straps or cables
  3. Ensuring all equipment is properly grounded to the rack
  4. Regularly testing ground connections
  5. Following local electrical codes and standards
  6. Using isolated ground receptacles where necessary
  7. Implementing a common bonding network (CBN)
  8. Documenting all grounding connections

Correct grounding is essential for electrical safety and reducing electromagnetic interference in the data center.

What are the latest trends in server rack design for data centers?

Recent trends in server rack design include:

  1. Increased focus on energy efficiency
  2. Integration of liquid cooling solutions
  3. Higher density designs (taller racks, more equipment per rack)
  4. Improved airflow management features
  5. Smart racks with integrated monitoring and management
  6. Modular and scalable designs for flexibility
  7. Enhanced security features (biometrics, IoT sensors)
  8. Eco-friendly materials and manufacturing processes

These trends reflect the industry’s move towards more efficient, flexible, and sustainable data center infrastructure.
